Indoor multi-core bundle type armored cable (GJAFKV)

Product Description

The structure of the optical fiber cable is the multi-strand aramid fiber reinforced with a multi-core bundle mini ф250μm optical fiber surface. A PVC or LSZH inner jacket is extruded on the stranded surface as a subunit, and the multi-core bundle subunit is twisted into a circle In its outer layer winding a layer of steel wire armor, steel wire armor applied a small amount of aramid, then extruded PVC or LSZH outer sheath.

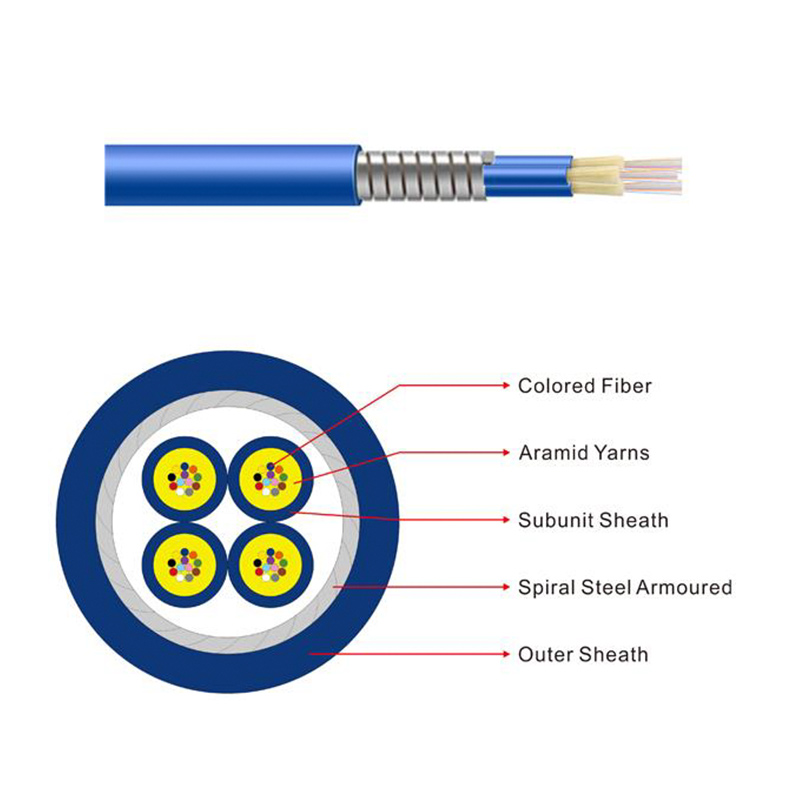

Product Structure

Product Features

Miniature cable, high-strength aramid reinforced, high-performance jacket material protection.
Bending radius is small, light weight, soft, flexible, easy to follow.
Flat wire armored to improve the optical cable compression and anti-rat ability.
Has good mechanical and environmental performance.
Flame retardant or non-flame retardant outer jacket to provide good safety protection.

Product Standard

· GJAFKV cable reference YD / T 2488-2013, IECA-596, GR-409, IEC794 and other standards; In line with UL certification OFNR, OFNP requirements.

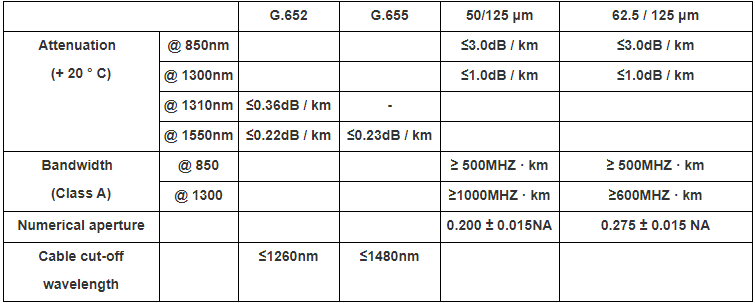

Optical Characteristics

Technical Parameters

Cable type      Cable Type	Fiber number    Fiber Count	Subunit outer diameter  Subunit Diameter  mm	Cable diameter      Cable a Diameter   mm	Cable weight      Cable Weight   Kg / km	Allowable tension         Tensile Strength  Long / Short Long / Short Term N	Allowable pressure   Crush Resistance   Long / Short   Long / Short Term N / 100m	Bending radius      Bending Radius    Static / Dynamic   Static / Dynamic mm
GJFJV + SV	twenty four	7.0	5.0	64	300/750	200/1000	20D / 10D
GJFJV + SV	48	10.0	6.0	100	300/750	200/1000	20D / 10D

Temperature

Transport temperature	-20 ℃ ~ +60 ℃
storage temperature	-20 ℃ ~ +60 ℃
Installation temperature	-5 ℃ ~ +50 ℃
Operating temperature	-20 ℃ ~ +60 ℃

· Various conventional connector products.
Pigtail, jumper.
Optical communication equipment room, optical patch panels, fiber to the desktop and other light even.
Optical connection of optical equipment, instruments, etc.
Indoor horizontal wiring, vertical wiring within the building; LAN network, multi-information point connection.
· Long-distance, outdoor, building wiring, trunking optical hybrid optical connection.
The backbone of the tail cable, access to the equipment inside the building.
· Small installation space and occasional wiring.
