Fiber Optical Cables/

Multi Purpose Break-out Cable (GJFJHV)

·Good mechanical and temperature performance

·Small diameter, light weight and friendly installation

·Long delivery length and low price.

  • Product Detail
  • Application
  • FAQs
  • Packing&Delivery

Product Description

GJFJHV cable,the tight buffer fiber is placed on the surface with a layer of aramid yarn as strength member units,multi fibers as the subunit twist with FRP(and some cushions) into the circle ,and finally into fiber optic cable with PVC or LSZH sheath,with dry-type water-blocking materials between fiber and sheath.

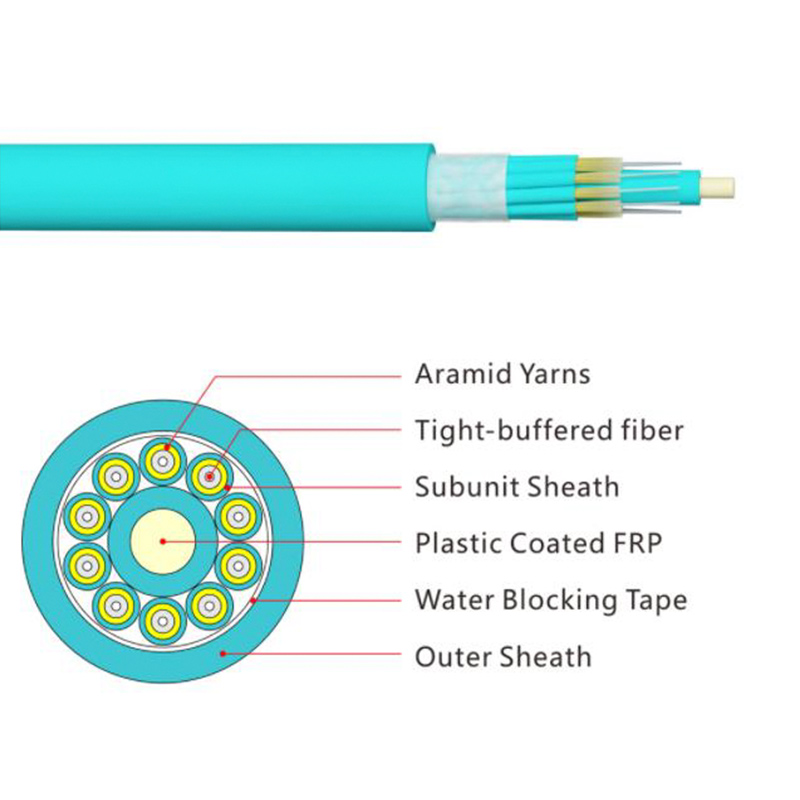

Product structure

Product Features

·Each sub cable contains aramid yarn,good bend performance,without gel,cleaning friendly,easy construction and connection.
·Tight buffer fiber with single strength member and sheath to overcome the effect from bad environment and Mechanical stress.
·LSZH sheath,anti-retardant,Self-extinguishing,Suitable for machine room, cable shaft and used in indoor environment such as wiring inside the wall.
·LSZH sheath,UV,Waterproof mildew,ESCR,No acid gas release,non-corrosive room equipment, suitable for indoor and outdoor use or need a high flame-retardant grades of the   indoor environment (such as wiring in the ceiling, open wire cabling etc.)

Product Standard

·GJFJHV cable complies with Standard YD/T1258.4-2009、ICEA-596、GR-409、IEC794 etc; and meets with the requirements of UL approval for OFNR.

Optical Characteristics

Technical Parameters

    Fiber Count
     Subunit Diameter
     Cable Diameter

     Cable Weight
     Tensile Strength
     Long/Short Term

     Crush Resistance        Long/Short Term
     Bending Radius

Enviromental Characteristics

Transport Temperature-20℃~+60℃
Storage Temperature-20℃~+60℃
Installation Temperature-5℃~+50℃
Operating Temperature-20℃~+60℃

·Indoor horizontal wiring, vertical wiring in buildings, LAN network.
·Standard core can be directly apply to connectors,to use for device connecting
·Used as a backbone cable tail can access directly from the indoor and outdoor to save the junction box, isolated lightning, improve system reliability.

1.Are you factory or trading company?
We have 2 big factories, one is for fiber optic cable, the other one is for communication equipments,so we can offer you high quality ,factory price and fast delivery. Welcome to visit our factory, we can pick you up from airport.
2. Can I buy samples before placing orders?
Yes.We are happy to send you sample to test quality.
3.What is your lead time?
-For usual products, we have stock, we can ship out within 3 days. If we don’t have stock,It depends on the quantity , normally 7 days to 15 days.
4.What is your payment term?
30% as deposit, balance before delivery. Or balance againest copy of BL.
5.What is the shipping method?
-By sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
6.Can you offer ODM&OEM?
-Yes, we accept ODM&OEM.We have our own R&D team with 18 years experience.

The bulk cargo of optical fiber equipment can be transported by air or by sea; the whole container can be transported by sea. The shipping time for conventional goods is 3-5 days, and OEM goods are generally shipped within 7-10 days. All packaging is in accordance with customer requirements.
